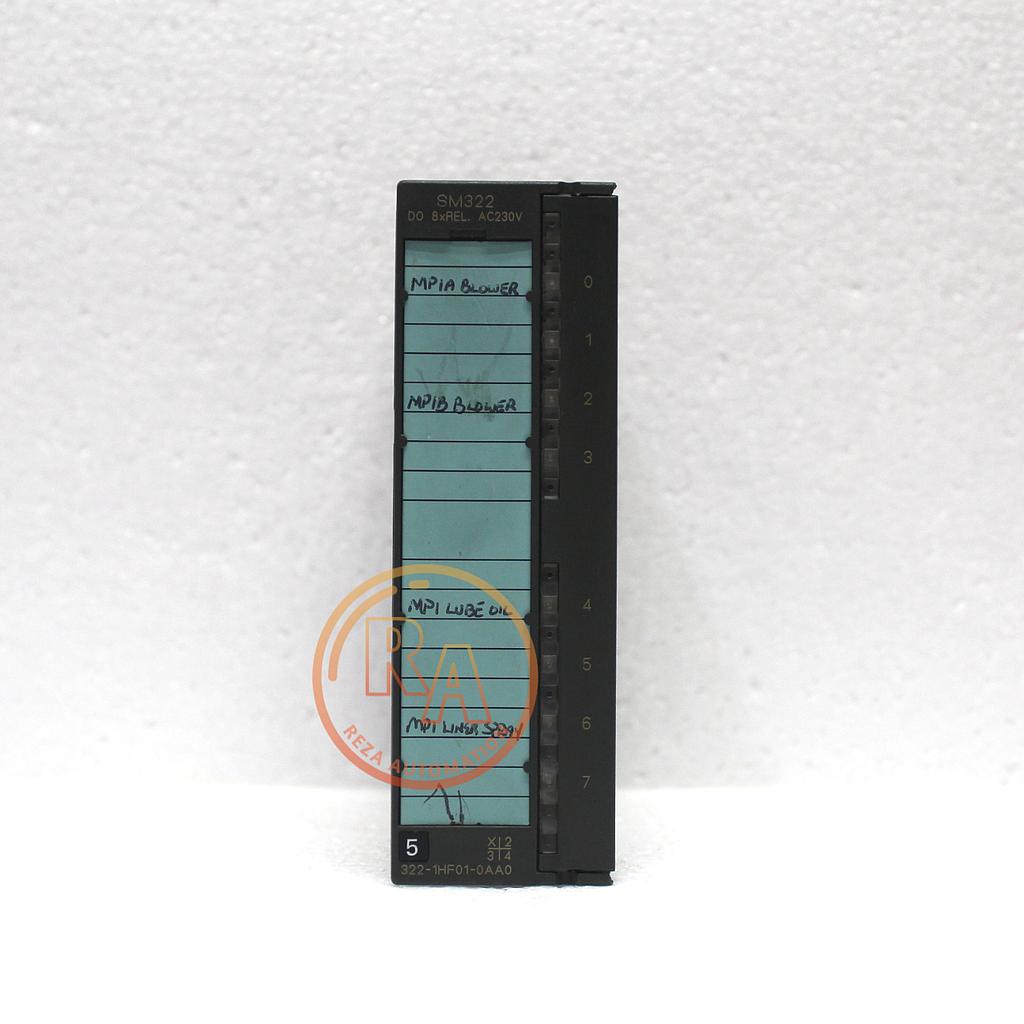

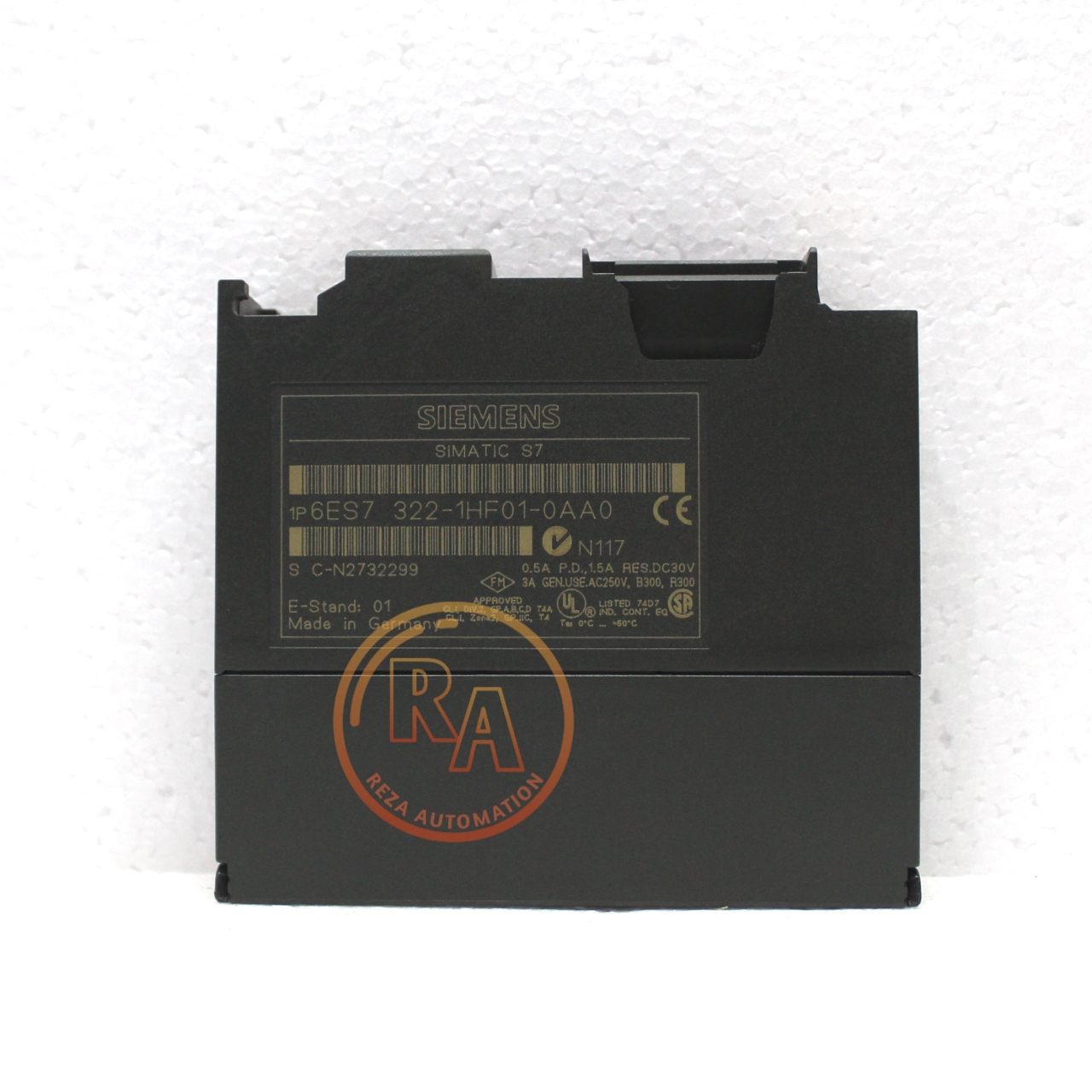

Siemens 6ES7322-1HF01-0AA0 SIMATIC S7-300 SM322 Digital Output, 8-P, Relay 2A

Stock Avialable : 1.0
Add to Cart

Manufacturer : Siemens

Product No : 6ES7322-1HF01-0AA0

Product type : SIMATIC S7-300, Digital Output SM 322

Cable length shielded, max. 1 000 m, unshielded, max. 600 m

Rated supply voltage of relay coil L+ (DC) 24 V; 110 mA

Number of digital outputs : 8; Relays

Power loss, typ. : 3.2 W

Supply voltage rated value : 24V DC

Input current from supply voltage L+, max. 160 mA, from backplane bus 5 V DC, max. 40 mA

Connection method required front connector 20-pin

Isolation tested with 1500 V AC

Dimensions (LxWxH) : 12cm x 4cm x 12.5cm
